Box trucks come in several different sizes, so there is no single length that applies to every box truck. Smaller box trucks may be around 10 to 16 feet long, while larger moving and commercial box trucks can reach 20 to 26 feet or more in overall length.
For many common rental and moving applications, 16-foot, 20-foot, and 26-foot box trucks are among the sizes people commonly encounter.

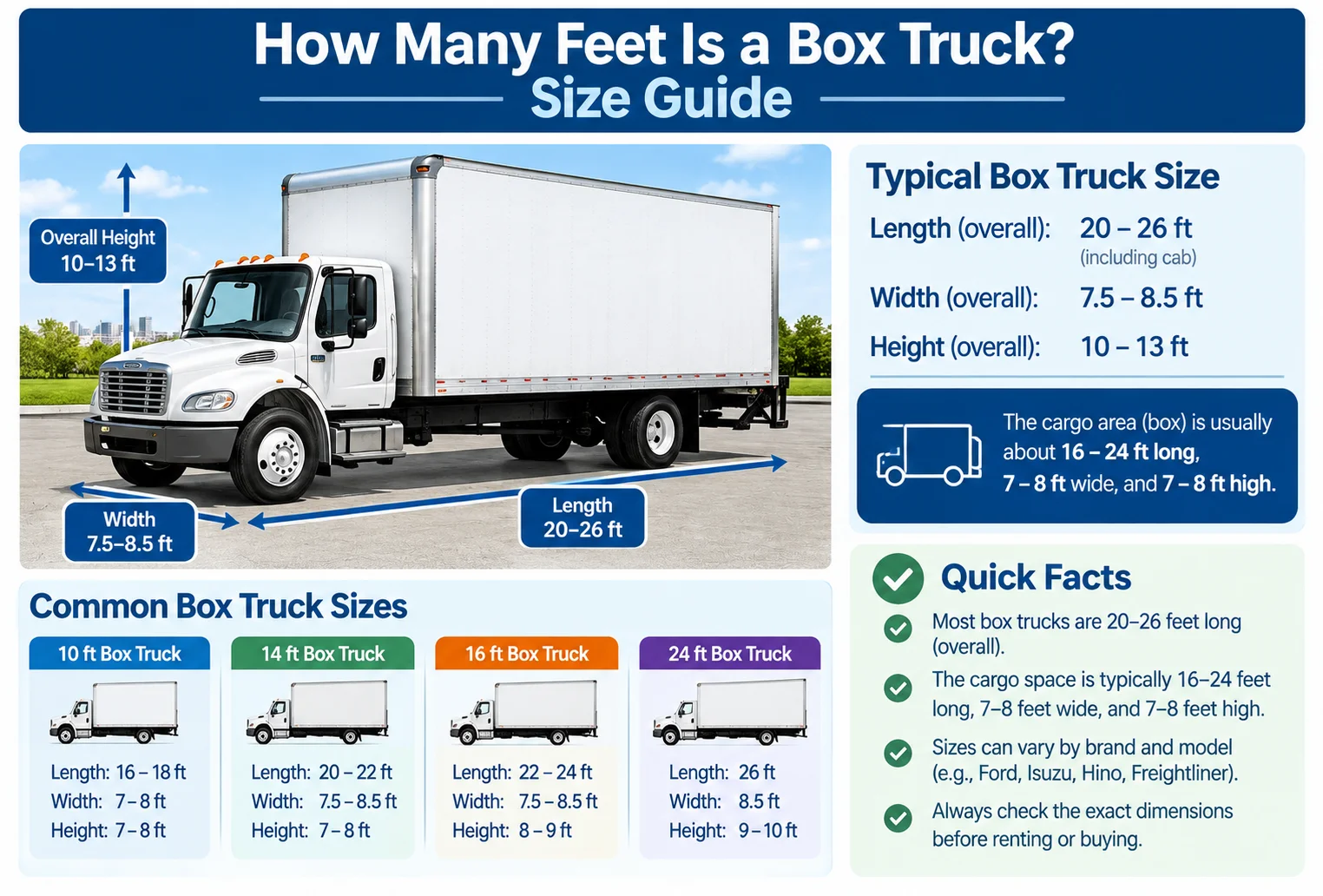

Quick Answer
A box truck can be approximately 10 to 26+ feet long, depending on the model and configuration.
| Box Truck Type | Typical Cargo Box Length | Approx. Overall Length |
|---|---|---|
| Small box truck | 10–12 ft | 15–20 ft |
| Medium box truck | 14–16 ft | 20–25 ft |
| Large box truck | 20–22 ft | 26–32 ft |
| Large moving truck | 24–26 ft | 30–35+ ft |
The cargo box length and total truck length are not the same measurement. A 20-foot cargo box, for example, will have a longer overall vehicle length because the cab and other components extend beyond the cargo area.
What Is a Box Truck?
A box truck is a commercial vehicle with a separate enclosed cargo area mounted directly behind the cab. The cargo compartment has a rectangular, box-like shape, which is where the name comes from.
Box trucks are commonly used for:
- Moving household furniture
- Delivering appliances
- Transporting packages
- Furniture delivery
- Commercial deliveries
- Construction materials
- Equipment transportation
- Local freight
Unlike a tractor-trailer, a box truck normally has the cab and cargo body on the same vehicle rather than using a separate tractor and trailer.
How Long Is a Box Truck?
The length depends primarily on the size of the cargo box and the vehicle’s chassis.
Common cargo box lengths include approximately 10, 12, 14, 16, 20, 22, 24, and 26 feet.
| Cargo Box Length | Typical Use |
|---|---|
| 10 ft | Small deliveries |
| 12 ft | Small moves and deliveries |
| 14 ft | Apartments and moderate loads |
| 16 ft | Medium household moves |
| 20 ft | Larger moves and commercial loads |
| 22 ft | Large commercial loads |
| 24 ft | Large moving and freight applications |
| 26 ft | Large moves and maximum-size box trucks |
These are general size categories. Actual dimensions vary by manufacturer, chassis, body builder, and truck configuration.
How Long Is a 10-Foot Box Truck?
A 10-foot box truck has approximately 10 feet of cargo-box length.
Its overall vehicle length will be greater because the cab is positioned in front of the cargo box.
A truck in this size category can be useful for smaller deliveries, furniture transportation, or moving the contents of a small apartment.
How Long Is a 12-Foot Box Truck?
A 12-foot box truck has approximately 12 feet of cargo space from front to back.
The overall truck will usually be longer than 12 feet because the vehicle also includes the cab and other components.
A 12-foot cargo box can provide more room than a small cargo van while remaining considerably smaller than a large moving truck.
How Long Is a 16-Foot Box Truck?
A 16-foot box truck has a cargo area approximately 16 feet long.
This is a commonly encountered size for moving and delivery applications.
The actual overall vehicle length can be several feet longer than the cargo box.
| Measurement | Approximate Size |
|---|---|
| Cargo box length | 16 ft |
| Cargo box width | About 7–8 ft |
| Cargo box height | About 6–8 ft |
| Overall vehicle length | Often around 20–25 ft |
Exact specifications depend on the particular truck.
How Long Is a 20-Foot Box Truck?
A 20-foot box truck has approximately 20 feet of cargo-box length.
Because the cab is included in the overall vehicle, the complete truck can be considerably longer than 20 feet.
A truck with a 20-foot cargo body can be suitable for larger household moves, furniture delivery, commercial freight, and other applications requiring substantial enclosed cargo space.
How Long Is a 26-Foot Box Truck?
A 26-foot box truck has approximately 26 feet of cargo-box length.
This is one of the larger box truck sizes commonly used for moving and commercial transportation.
The complete vehicle is longer than 26 feet because the cab and other components are positioned in front of the cargo box.
| Measurement | Approximate Size |
|---|---|
| Cargo box length | 26 ft |
| Cargo box width | About 8 ft |
| Cargo box height | About 8–9 ft |
| Overall vehicle length | Often around 30–35+ ft |
Exact dimensions vary considerably by manufacturer and configuration.
Box Truck Length Compared With Other Vehicles
Looking at other familiar vehicles can make box truck dimensions easier to understand.
| Vehicle | Approximate Length |
|---|---|
| Small car | 13–15 ft |
| Full-size pickup | 18–21 ft |
| 16-ft box truck cargo box | 16 ft |
| 20-ft box truck cargo box | 20 ft |
| 26-ft box truck cargo box | 26 ft |
| Tractor-trailer combination | About 70–80 ft in many configurations |
These are general comparisons rather than exact specifications.
A 26-foot box truck cargo body, for example, is substantially longer than an average passenger car.
How Wide Is a Box Truck?
Box trucks are generally around 7 to 8.5 feet wide, although exact dimensions depend on the vehicle.
The width is important when planning parking, loading areas, garages, driveways, or delivery access.
| Box Truck Size | Typical Width Range |
|---|---|
| Small | About 6.5–7.5 ft |
| Medium | About 7–8 ft |
| Large | About 8–8.5 ft |
Remember that mirrors can extend beyond the main body width.
How Tall Is a Box Truck?
Box truck height varies based on the chassis, cargo body, roof design, and configuration.
Many medium and large box trucks are approximately 8 to 13 feet tall overall.
| Truck Type | Approximate Overall Height |
|---|---|
| Small box truck | 8–10 ft |
| Medium box truck | 9–11 ft |
| Large box truck | 10–13 ft |
Always check the exact truck’s posted height before entering a garage, parking structure, tunnel, loading dock, or other area with a height restriction.
Box Truck Dimensions: Length, Width, and Height
The three most important physical measurements are length, width, and height.
| Box Truck Size | Cargo Length | Typical Width | Typical Height |
|---|---|---|---|
| Small | 10–12 ft | 6.5–7.5 ft | 8–10 ft |
| Medium | 14–16 ft | 7–8 ft | 9–11 ft |
| Large | 20–22 ft | 7.5–8.5 ft | 10–12 ft |
| Extra large | 24–26 ft | 8–8.5 ft | 10–13 ft |
These ranges are useful for general planning, but the manufacturer’s specifications should be used when exact clearance or capacity matters.
How Much Cargo Space Does a Box Truck Have?
Cargo capacity depends on the cargo box dimensions.
For a rectangular cargo compartment, the basic volume formula is:
Length × Width × Height = Cubic Feet
For example, a hypothetical cargo box measuring 16 feet long × 8 feet wide × 8 feet high would have:
16 × 8 × 8 = 1,024 cubic feet
This is a theoretical interior volume. Real cargo capacity can be lower because of wheel wells, doors, walls, equipment, and the way items need to be loaded.
| Cargo Box | Theoretical Volume |
|---|---|
| 12 × 7 × 7 ft | 588 cu ft |
| 16 × 8 × 8 ft | 1,024 cu ft |
| 20 × 8 × 8 ft | 1,280 cu ft |
| 26 × 8 × 8.5 ft | 1,768 cu ft |
These calculations are examples based on the dimensions shown and are not specifications for every box truck.
How Many Feet Is a Box Truck for Moving?
For moving purposes, box trucks are commonly available in different cargo lengths, with 16-foot and 26-foot trucks being notable examples.
The appropriate size depends on the amount of furniture and belongings being moved.
| Cargo Box Size | General Moving Use |
|---|---|
| 10–12 ft | Small move or apartment |
| 14–16 ft | Small to medium household |
| 20 ft | Larger household |
| 24–26 ft | Large household or substantial move |
The number of rooms a truck can hold depends on furniture dimensions, packing efficiency, appliances, boxes, and how the truck is loaded.
Can a Box Truck Fit in a Garage?
Whether a box truck fits in a garage depends on both the truck and the garage.
You need to compare:
- Overall truck length
- Overall truck width
- Overall truck height
- Garage door width
- Garage door height
- Interior garage length
- Turning space
- Clearance around the truck
Height is especially important. A truck may be short enough to fit inside a garage but too tall to clear the garage door.
For example, if a garage door has an 8-foot clearance and the truck is 10 feet tall, the truck cannot enter regardless of its length.
How Much Space Does a Box Truck Need to Park?
The required parking area depends on the truck’s total length rather than just its cargo box length.
A 26-foot cargo box does not mean the truck needs only a 26-foot-long parking space. The cab adds additional length.
For comfortable parking and maneuvering, additional clearance should be allowed beyond the physical truck dimensions.
| Truck Size | Cargo Box | Parking Consideration |
|---|---|---|
| Small | 10–12 ft | Needs space beyond cargo-box length |
| Medium | 14–16 ft | Allow extra front and rear clearance |
| Large | 20–22 ft | Requires substantial maneuvering room |
| Extra large | 24–26 ft | Requires significant parking and turning space |
Exact parking requirements depend on the site layout and local regulations.
Box Truck vs. Semi-Truck
Box trucks and semi-trucks are different vehicle types.
| Feature | Box Truck | Semi-Truck |
|---|---|---|
| Cargo body | Fixed to truck | Trailer attached to tractor |
| Typical use | Local/regional delivery | Long-distance freight |
| Overall length | Often much shorter | Often much longer |
| Cargo area | Enclosed box | Trailer |
| Maneuverability | Generally easier in tight areas | Requires more space |
A large box truck can still be substantial in size, but a tractor-trailer combination is generally much longer.
Why Box Truck Size Matters
Knowing the length of a box truck is important when:
- Planning a move
- Renting a moving truck
- Measuring a driveway
- Planning a loading area
- Checking parking space
- Calculating cargo capacity
- Checking garage clearance
- Planning delivery access
- Comparing different rental trucks
Do not rely only on the advertised cargo-box length when determining whether a truck will fit somewhere. Check the complete vehicle dimensions.
Frequently Asked Questions
How many feet is a typical box truck?
A box truck can range from roughly 10 to 26+ feet in cargo-box length, depending on the model. The total vehicle length is greater than the cargo-box length.
How long is a 26-foot box truck?
A 26-foot box truck has approximately 26 feet of cargo-box length. The overall truck is longer because the cab is located in front of the cargo body.
How long is a 16-foot box truck?
A 16-foot box truck has approximately 16 feet of cargo-box length. Its overall vehicle length is typically several feet longer.
How wide is a box truck?
Many box trucks are approximately 7 to 8.5 feet wide, although exact dimensions vary by model.
How tall is a box truck?
Many box trucks are approximately 8 to 13 feet tall, depending on the size and configuration.
Is a box truck longer than a car?
Yes. Even a small box truck is generally longer than a typical passenger car. Larger 20- or 26-foot box trucks can be substantially longer.
Is a 26-foot box truck actually 26 feet long?
Not necessarily. The 26-foot designation generally refers to the cargo box length, not necessarily the total vehicle length. The cab and other components make the complete truck longer.
Conclusion
So, how many feet is a box truck? There is no single answer because box trucks come in many sizes.
Common cargo-box lengths range from about 10 to 26 feet, with 16-, 20-, and 26-foot configurations commonly used for moving and commercial applications.
The key distinction is between cargo-box length and overall vehicle length. A truck advertised as a 26-foot box truck can have a total length greater than 26 feet.
For parking, garage clearance, road access, or loading-area planning, always use the manufacturer’s exact overall length, width, and height rather than relying only on the cargo-box size.
